Keestar bag closing system

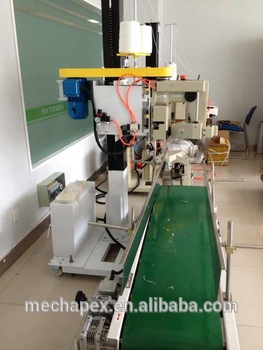

Keestar DS-9C+A1-PB bag closing system Application: Keestar DS-9C+A1-PB bag closing system is used for high speed packing line. DS-9C is the highest speed bag closing machine head in the world. it could provide both plain stitch closing and crepe tape closing. with strong pedestal A1-PB, the system can be used with keestar conveyor or existing conveyor to built-up an automatic bag closing sysytem. it could work as one part of full automatic bagging system. Features: 1. automatic start-stop; 2. built-in 50mm guillotine pneumatic driven cutter for both crepe tape and thread cutting; 3. high speed, max 1200bag/hour output, could work for automatic bagging system; 4. full closed structure of DS-9C make it an idea machine for chemical and high dust industry. Specification: capacity 500-800 bags/hour sewing head height 720-1220mm from floor to needle drive motor 0.37/0.75kw 4P 3PH break motor controlling system relay start/stop photoelectric sewing head DS-9C max speed 2700rpm cutting system pneumatic guilotine cutting system lubrication system automatic oil bath thread polyester20/6 20/9(2*3,3*3) feed-in CM4900/CP4900/F5000/F5001
